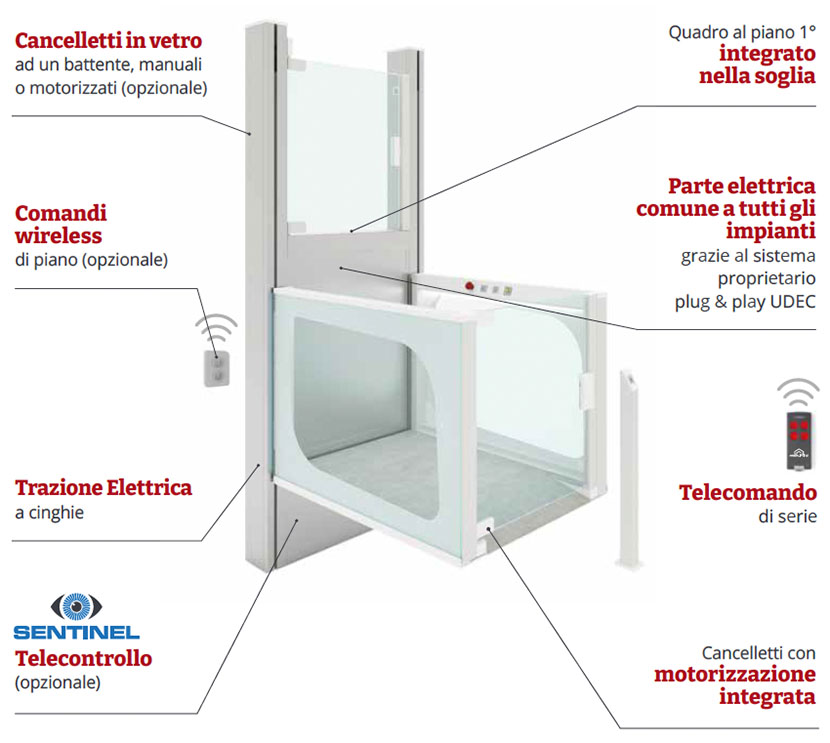

The benefits to you
Assembles in a day, thanks to factory pre-assembly
Adjustable stroke on site (+/-50mm)
Suitable when design and elegance are important
No masonry work
Low maintenance
Shipping in two unique packages
Highlights
| Scope | 400 kg Max. |
| Maximum stroke | 3 m |
| Application | Indoor & Outdoor |
| Platform dimensions | (WxD) 1100 x 1400 mm, 950 x 1400 mm, 950 x 1250 mm |
| Pit | Without |
| Traction | Belt-driven electric |
| Complies with. | BS6440-2011 and M.D. 2006/42/EC |
Cabina chiusa elegante con 112 combinazioni di dimensioni
Senza locale macchine MRL con quadro al piano terra a fianco della porta
Porte automatiche scorrevoli telescopiche.
Telecontrollo "Sentinel"
Data sheet
General features
| Drive / Drive | Electric Worm Drive |
| Local Machinery | Without (MRL) |
| Installation | Exterior and Interior |
| Power supply | Single-phase 230 Vac/50 Hz |
| Capacity | 400 kg |
| Speed | 15 cm/s |
| – | |
| Stroke | 15m (max) |
| Entrances | Single/Opposite/Adjacent or Triple – (without cabin doors) |
| Single/Opposite – (with automatic doors) | |
| Stops | up to 6 (in line) |
| Header | LH+410mm (without cabin doors) |
| LH+480mm (with automatic doors) | |
| Pit | 100mm |
| Maneuver | Automatic |
| A man present | |
| Electrical Panelboard | in Inox cabinet next to the P0 floor door |
| Running compartment | In Masonry or Concrete |
| Iron Structure CROSS-50 | |
| Noise Level (*) | Less than 45 dB (*) |
| Rated Power/Motor | 3 Kw |
| Absorbed Power | 16 A |
| Cycles / Hour (**) | 10 max. |
| Allowable Temperatures | -5°C/+45°C |
| Reference Standards | D.M.2006/42/CE – EN81.41:2010 |
SAFETY SYSTEMS (standard)
Acoustic Alarm Button
Overload Sensors
Emergency STOP Switch
Emergency Light
Infrared Access Protection Barriers
–
Floor Door Locks with Release from Outside
Two-way Intercom
Automatic Emergency Descent
CABIN / PLATFORM TYPE
| Cabin type / platform | Closed cabin |
| Internal Height of Cabin (CH) | 2100mm (min.2000 – max2200mm) |
| Height of Footboard (PH) | – |
| Dimensions Available | 112 Comb. with 50 mm pitch (without cabin doors) |
| 54 Comb. with 50 mm pitch (with automatic doors) |
CABIN DOORS
Without (with Electronic Barriers)
Automatic Telescopic Sliding
Door Height (LH) 2000mm – (min.1900mm – max.2100mm)
FLOOR DOORS.
Manual single swing – Slim
Double swing automatic – MyDomo
Automatic telescopic sliding
Door height (LH) 2000mm – (min.1900mm – max.2100mm)
Minimum and maximum dimensions
Masonry (or concrete) compartment
Automatic sliding doors (telescopic or central).
Motorized double swing doors MyDomo
Swing doors (manual or motorized).
Compartment in Cross structure (also for outdoor use)
Automatic sliding doors (telescopic or central).
MyDomo
Motorized double swing doors (manual or motorized)
(also with 1200×1250 mm cabin)
